FT-48100
The 48V 100Ah LiFePO4 Battery All-in-One Energy Storage System can be used for solar energy storage, also known as an all-in-one solar system. It comes from the factory with a 5kw off-grid inverter. No installation required, plug and play. The all-in-one solar energy storage system uses natural resources to store energy every day. Releasing energy for your home at night not only saves money, but also serves as an efficient backup power source.

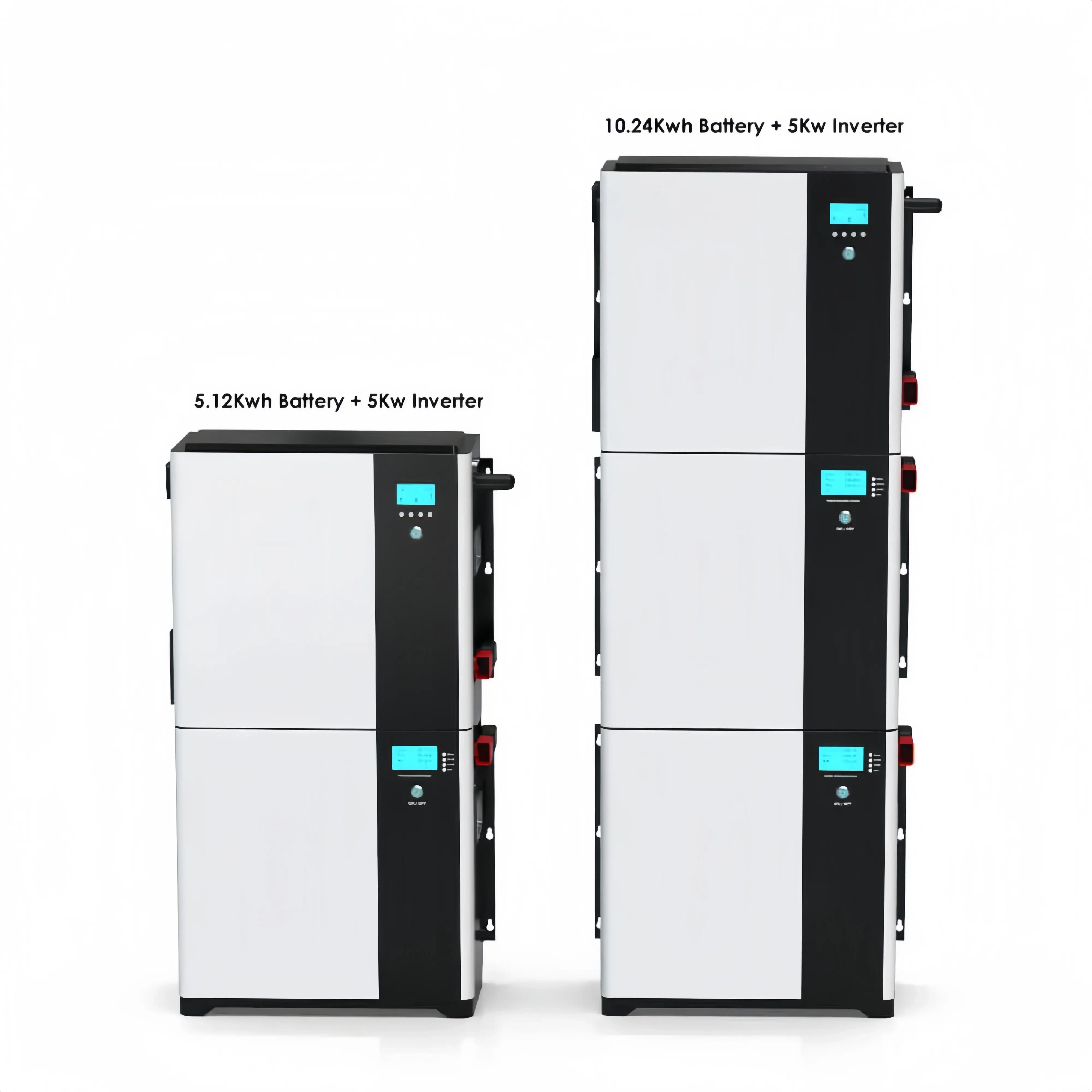

48V 100Ah LiFePO4 battery integrated energy storage system capacity can be flexibly expanded, a battery module energy of 5kwh, if you need to expand the power, the battery module can be stacked in parallel, can expand the capacity to 10kWh, 15kWh.

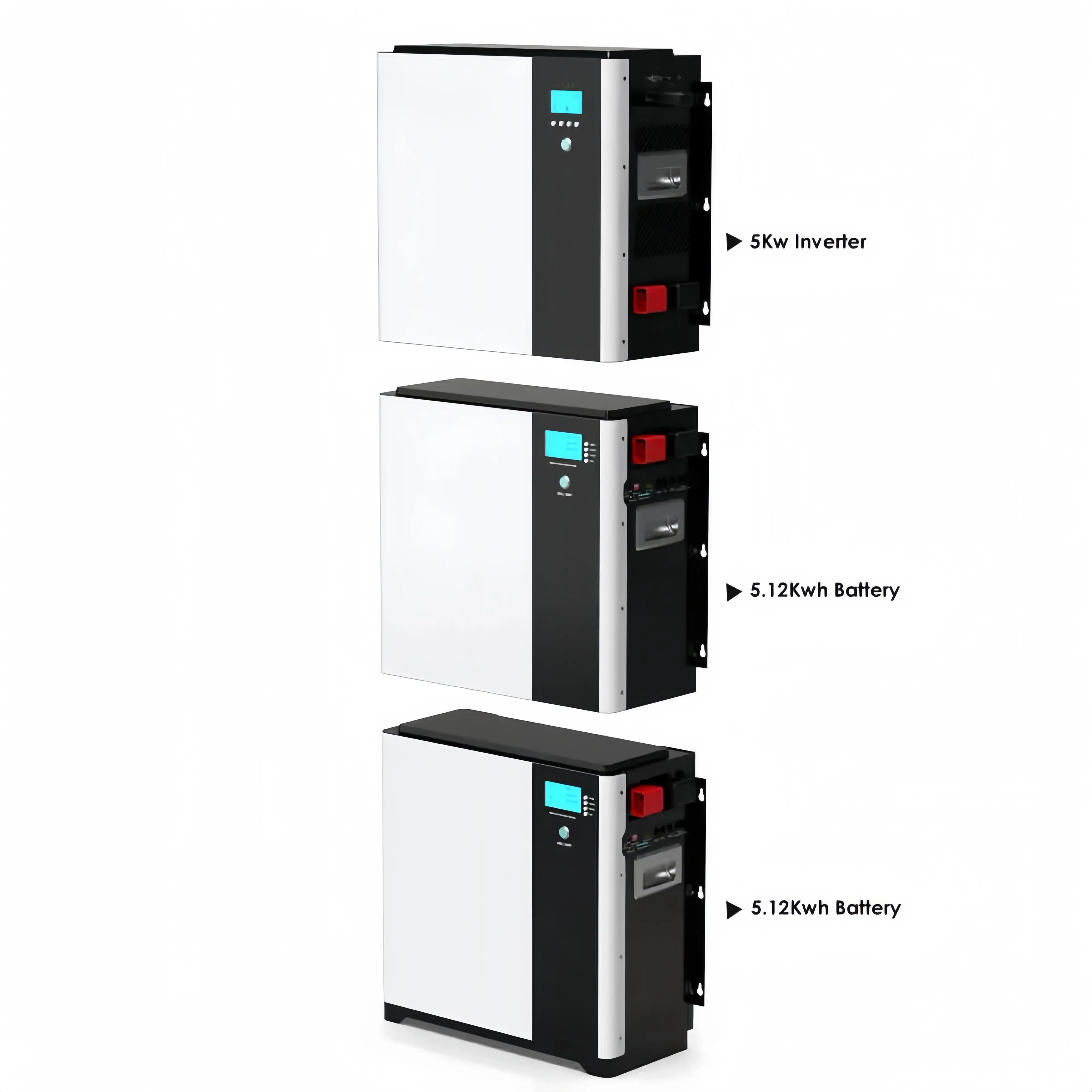

This 48V 100Ah all-in-one energy storage system increases capacity by stacking in parallel, which is not only easy to operate and saves space in the room, but can also be fixed on the wall and used as a wall-mounted battery.
|
FT-48100 (5kWh + 5KW inverter) |
|||
|
Battery Type |
LiFePO4/LFP |
Nominal Energy |
5.12kWh |
|
Nominal Voltage |
51.2V |
Nominal Capacity |
100Ah |
|
Charging Cut-off Voltage |
57.6V±0.2V |
Discharge Cut-off Voltage |
44.8V±0.2V |
|
Dimension (L*W*H) |
483*200*940mm |
Cycle Life |
≥6500 Time |
|
Temperature |
Charge: 0℃~50℃ / Discharge: -5℃~55℃ |
Communication |
RS485/CAN |
|
PV Input |
|||
|
Input Power(PV) |
5000W / 5500W(max) |
Input Voltage Range (PV) |
450VDC |
|
MPPT Voltage Range |
120-430VDC |
PV Max Charging Current |
0~80A (To be set) |
|
AC Input |
|||
|
Rating Input Voltage |
200V~240V AC |
Input Voltage Range |
(USP)185-280VAC/(APL)90-280 VAC (To be set) |
|
Input Frequency Range |
40-70 Hz (Auto test) |
Rating Input Current |
22.7A |
|
Max Input Current |
40A |
|
|
|
AC Output |
|||
|
Rating Output Power |
5000W |
Rating Output Voltage |
220VAC(208/220/230/240 Vac To be set) |
|
Output Waveform |
Pure Sine Wave |
Switch Time |
Typical 10ms |
|
Rating Output Frequency |
50/60Hz (To be set) |
Summit Efficiency |
＞93% |
The 48V 100Ah LiFePO4 battery all-in-one energy storage system has a robust casing, flexible configuration and efficient performance, which is favoured by many users and can be widely used in the following fields:
Anhui LEAD-WIN New Energy Technology Co., Ltd. is a manufacturer focusing on lithium battery products, the main products are all kinds of low-speed intelligent vehicle batteries and household energy storage products, including electric two-wheeled vehicle batteries, electric three-wheeled vehicle batteries, electric four-wheeled vehicle batteries, robotic batteries, forklift batteries, 48V rackmounted batteries, 12V lithium batteries, 48V telecommunication base station batteries, portable power supplies, etc., and the cumulative shipment volume has More than 400MWh, without a single case of safety accidents, has been recognised by many customers.
Technical advice: Our pre-sales customer service staff has many years of industry service experience and can provide professional advice on products or technology according to customer needs, helping with any questions related to lithium batteries.
Customised products: When customers have customised needs, they can first communicate with our sales managers. Then, we will communicate with our internal technicians to professionally assess the customer's needs and feedback the results to the customer as soon as possible.
OEM service: We provide professional OEM service, customers only need to inform our sales managers of their needs. We have rich OEM experience and are the core supplier of lithium batteries for many listed companies.
Standard products: We can provide you with the required product manuals, if you have questions about the product, you can always consult our sales manager, we will provide you with professional and comprehensive answers 24 hours.
1) Carton - Pallet - Container.
2) Packaging can also be customised according to customers' requirements.
1) Sample orders are shipped within 25-30 working days; bulk orders are shipped within 15-20 working days - from receipt of deposit and confirmation of sample.
2) Sample orders should be shipped by DHL, UPS, FedEx or TNT, bulk orders are recommended to be shipped by sea, we can provide forwarding service if you need.
LEAD-WIN is a company with its own factory, which integrates research, development, production and sales.
LEAD-WIN offers distributors a free trial of its indoor energy storage batteries. However, due to the high unit cost of the product, the customer is required to pay the sample price and shipping costs in advance, and the sample fee will be refunded when the total amount of the distributor's order (which can be accumulated) reaches $10,000 USD.
There are no MOQ restrictions for LEAD-WIN energy storage batteries. However, we do not support retail sales (except for sample orders).
LEAD-WIN's energy storage batteries can be shipped by sea or air. The default quotation is FOB.
For the standard products in stock, the delivery time is usually 3 working days (for product exit inspection, packaging inspection, etc.)
For customized products, the delivery time varies according to the company's capacity planning, project difficulty, material procurement cycle and other factors, which is roughly 4-6 weeks.
All LEAD-WIN energy storage batteries are packaged in hazardous materials packaging (cartons or wooden boxes, depending on the situation) to ensure the safety of the product in transit.
