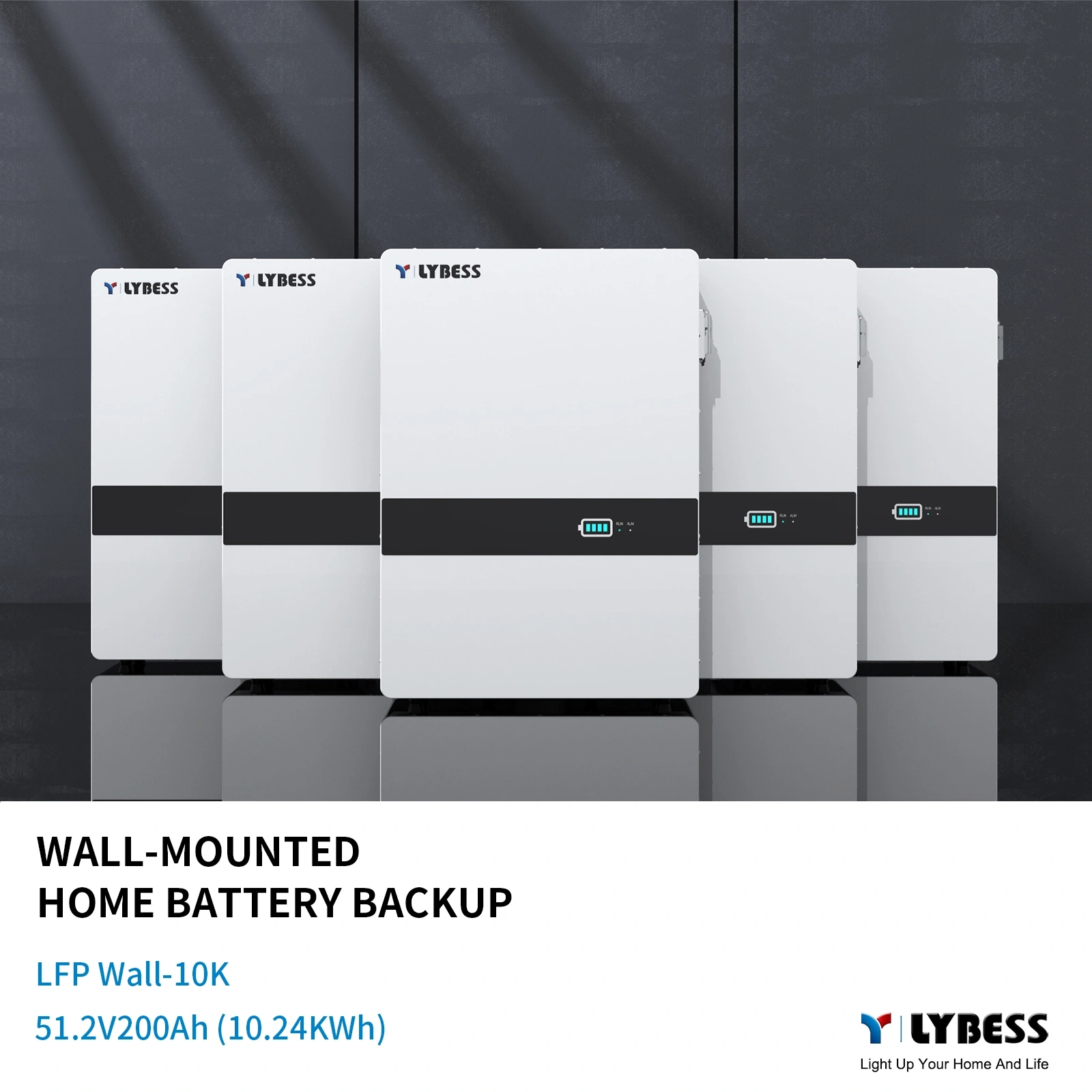

The 48V 200Ah wall mounted battery is a split household energy storage battery. It is IP65 rated and can be mounted on both indoor and outdoor walls, effectively saving house area. It is one of the mainstream designs of energy storage batteries at present.

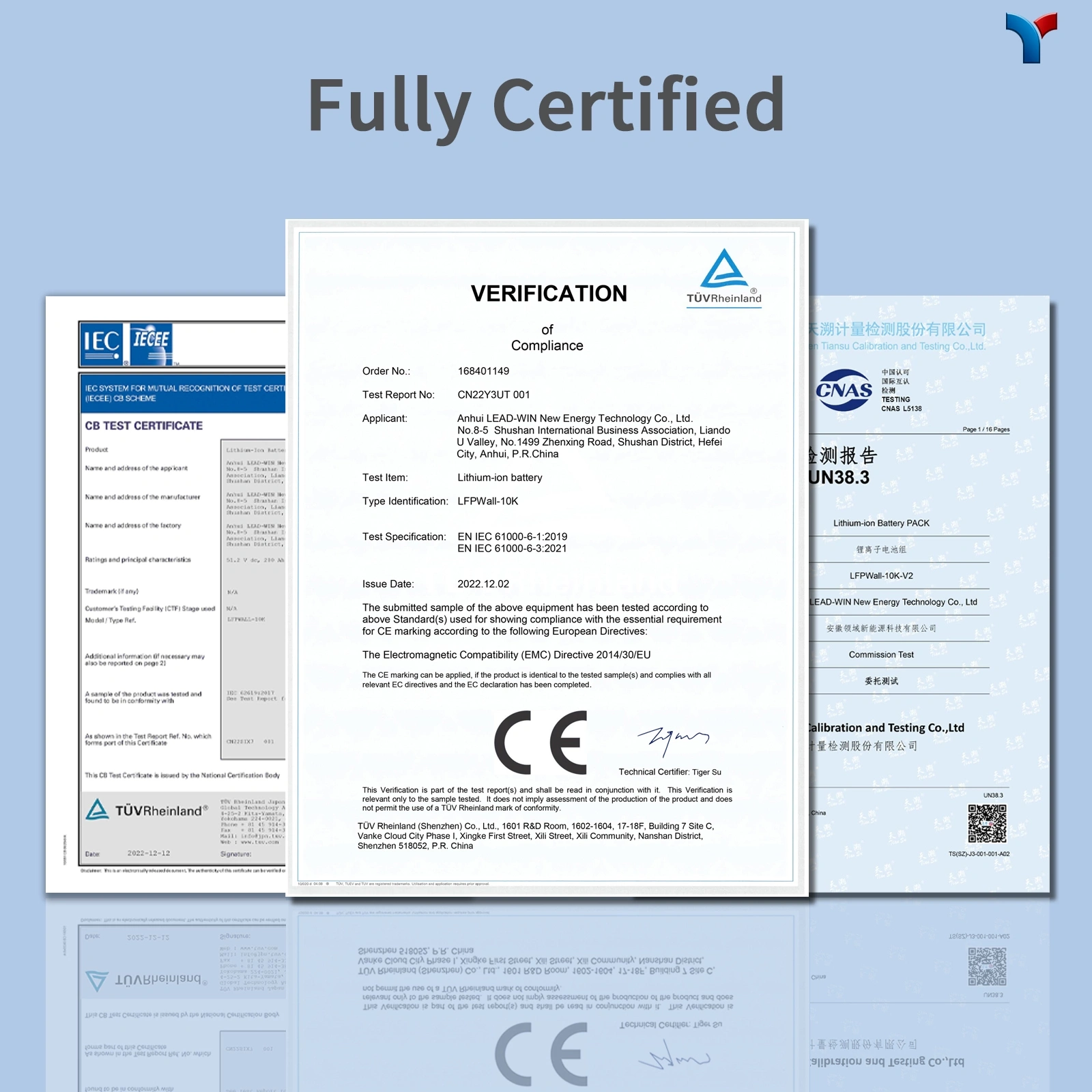

In addition to the mounting method, LEAD-WIN also offers three types of wall-mounted storage batteries with nominal voltage of 51.2V and storage capacity of 2.56KWh, 5.12KWh and 10.24KWh respectively, which can satisfy the needs of different sizes of households and can be expanded in parallel (up to 80KWh). The storage batteries are CE/CB/UN/MSDS certified to meet the needs of distributors or installers in different regions of the world, and the CAN/RS485 communication is designed to be compatible with all major inverter models.

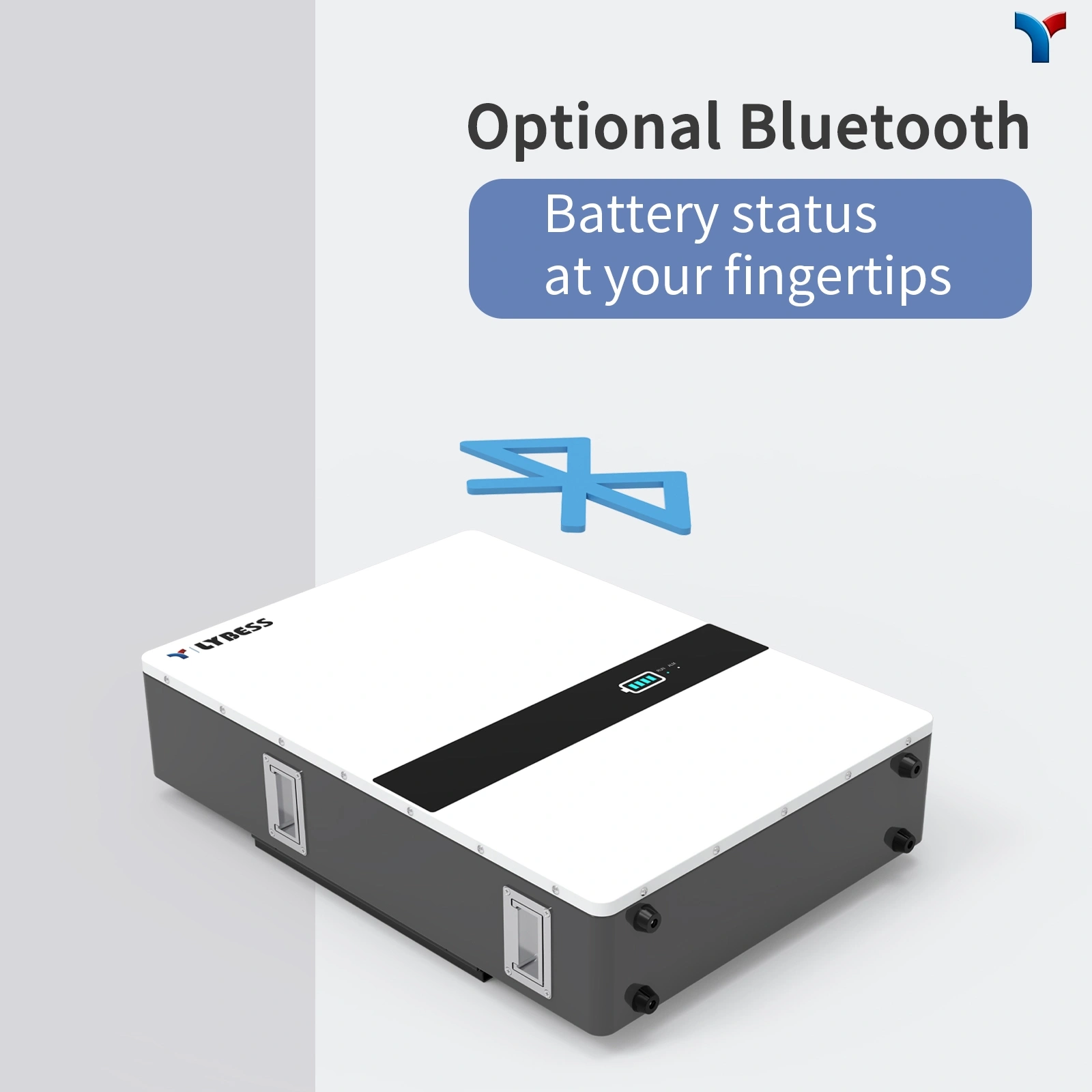

The low-voltage wall-mounted energy storage battery supports optional Bluetooth communication function, which allows users to connect to the cell phone APP via Bluetooth to monitor the battery operation data and health status in real time, making the key data of the battery transparent and clear at a glance, which reflects our confidence in the quality of our products.
|
LFP Wall-10K |
|||
|
Battery Type |
LiFePO4/LFP |
Nominal Energy |
10.24KWh |
|
Nominal Voltage |
51.2V |
Nominal Capacity |
200Ah |
|
Product weight |
96kg |
Maximum Output power |
10.24KW |
|
Operating temperature range |
-10℃~55℃ |
IP Protection |
IP65 |

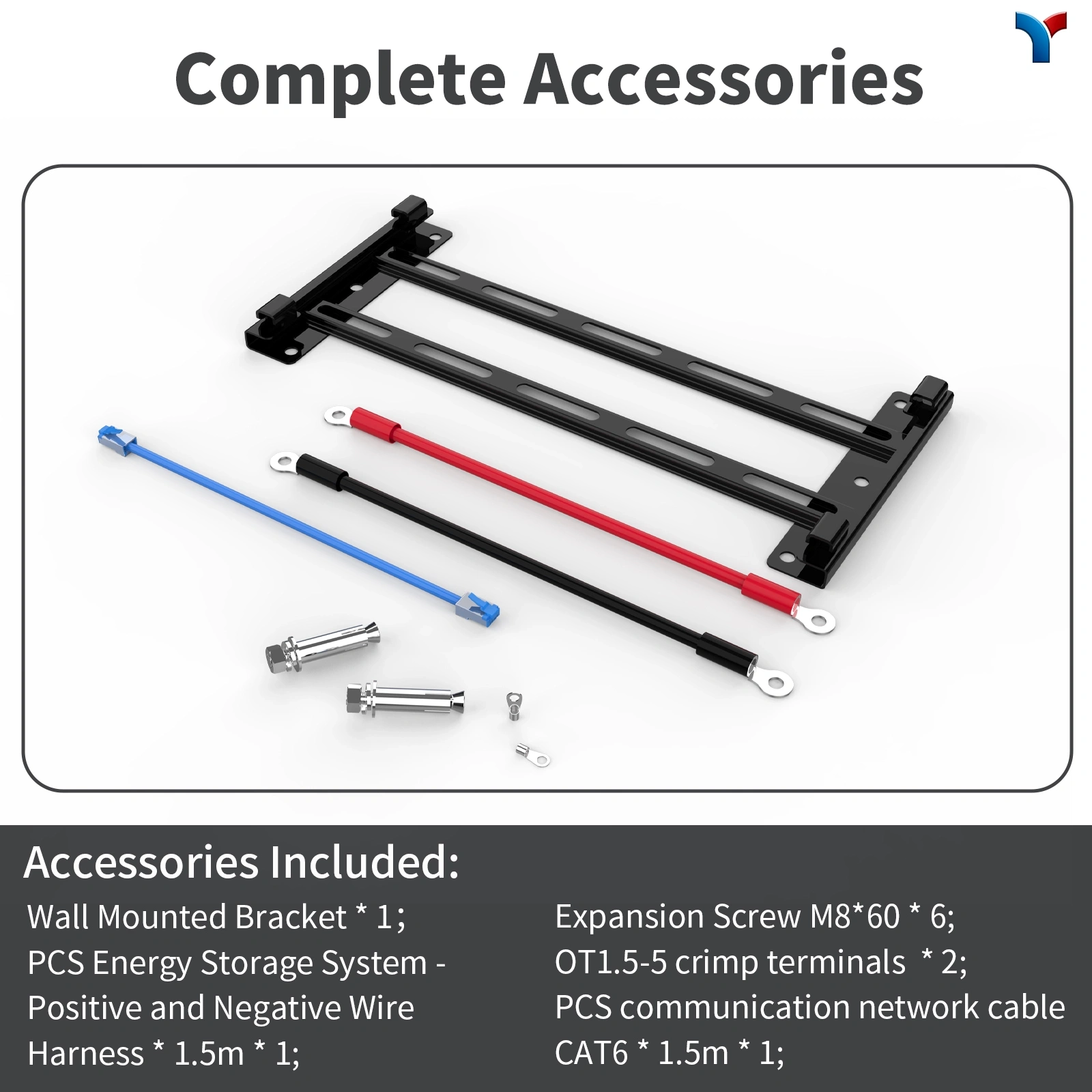

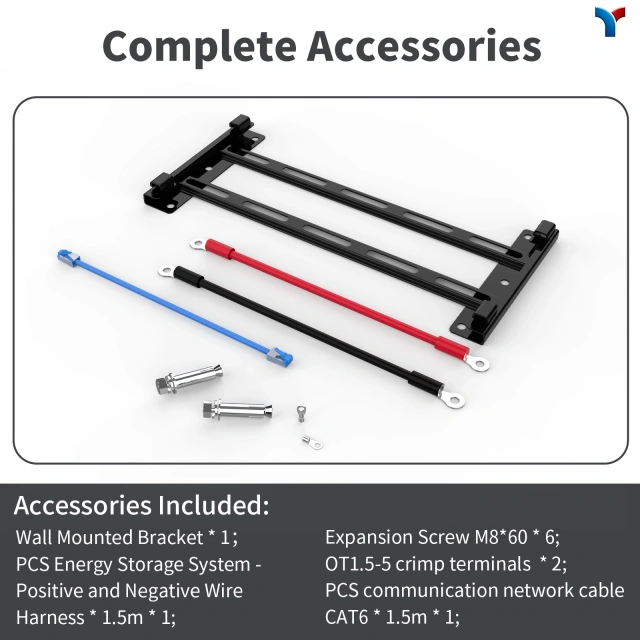

A COMPLETE RANGE OF ACCESSORIES
BATTERY SERIES/PARALLEL CONNECTION
PRODUCT INSTALLATION DIAGRAM
ADAPTABLE INVERTERS
Anhui LEAD-WIN New Energy Technology Co., Ltd. is a manufacturer focusing on lithium battery products, the main products are all kinds of low-speed intelligent vehicle batteries and household energy storage products, including electric two-wheeled vehicle batteries, electric three-wheeled vehicle batteries, electric four-wheeled vehicle batteries, robotic batteries, forklift batteries, 48V rackmounted batteries, 12V lithium batteries, 48V telecommunication base station batteries, portable power supplies, etc., and the cumulative shipment volume has More than 400MWh, without a single case of safety accidents, has been recognised by many customers.
Technical advice: Our pre-sales customer service staff has many years of industry service experience and can provide professional advice on products or technology according to customer needs, helping with any questions related to lithium batteries.
Customised products: When customers have customised needs, they can first communicate with our sales managers. Then, we will communicate with our internal technicians to professionally assess the customer's needs and feedback the results to the customer as soon as possible.
OEM service: We provide professional OEM service, customers only need to inform our sales managers of their needs. We have rich OEM experience and are the core supplier of lithium batteries for many listed companies.
Standard products: We can provide you with the required product manuals, if you have questions about the product, you can always consult our sales manager, we will provide you with professional and comprehensive answers 24 hours.
1) Carton - Pallet - Container.
2) Packaging can also be customised according to customers' requirements.
1) Sample orders are shipped within 25-30 working days; bulk orders are shipped within 15-20 working days - from receipt of deposit and confirmation of sample.
2) Sample orders should be shipped by DHL, UPS, FedEx or TNT, bulk orders are recommended to be shipped by sea, we can provide forwarding service if you need.
